heating cables for pipes

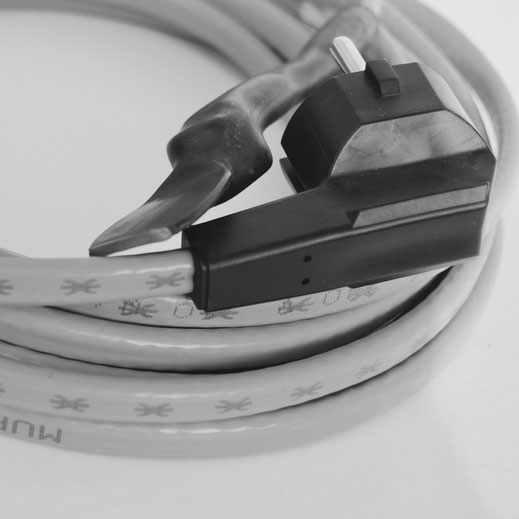

NO FROST PIPE SYSTEM  WITH THERMOSTAT AND PLUG

HEATING CABLES TO AVOID FROST ON PIPES

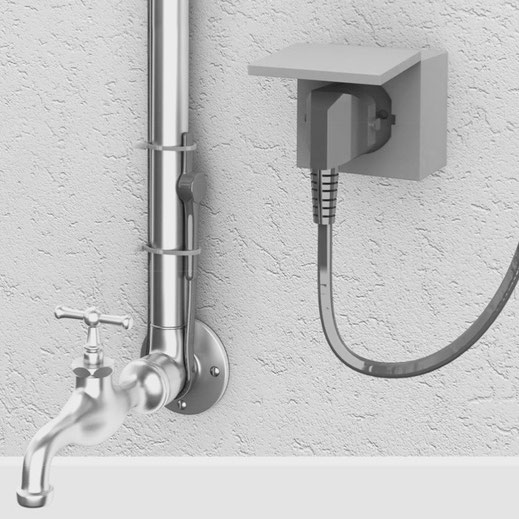

The NO FROST PIPE SYSTEM is the perfect solution to solve the problem of pipe frosting. It is a heating cable at a costant power and ready to be used.

It is equipped with thermostat, calibrated for input at 5°C and output at 15°C; 2mt of cold cable and plug for connection.

DATA SHEET TO DOWNLOAD WITH ALL THE INFORMATION YOU NEED

Download
NO FROST PIPE SYSTEM LORENZONI
WITH THERMOSTAT AND PLUG
2021 - NO FROST PIPE - Data Sheet.pdf
Documento Adobe Acrobat 1.1 MB
no frost pipes heating cables lorenzoni

heating cables No Frost Pipe System Lorenzoni
heating cables No Frost Pipe System Lorenzoni


NO FROST PIPE SYSTEM SELF REGULATING CABLE TTM/MICRO

SELF REGULATING CABLE NO FROST PIPE



The NO FROST PIPE system is the perfect solution to the problem of water freezing inside pipes, in water solutions, in fuel oil and in any other kind of liquid.

It is a heating cable with semi-conductive matrix (made of polymer powder and graphite). The power produced decreases ad the temperature increases.



It can be cut to length, spliced and derived.

In case the cable overlaps, it does not produce dangerous overheating nor deterioration.



It is available equipped with all its accessories and control devices.

DATA SHEET TO DOWNLOAD WITH ALL THE INFORMATION YOU NEED

Download
NO FROST PIPE SYSTEM LORENZONI
SELF-REGULATING TTM/MICRO
2021 - NO FROST PIPE TTM_MICRO - Data Sh
Documento Adobe Acrobat 531.8 KB
No frost pipe system lorenzoni, no frost pipes
SELF REGULATING NO FROST PIPE SYSTEM TTM/MICRO

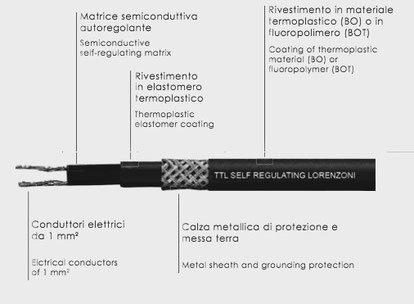

NO FROST PIPE SYSTEM SELF REGULATING CABLE TTL

SELF REGULATING CABLE NO FROST PIPE

Heating cable that protects from ice and maintains pipes and tanks in temperature in industrial applications in safe areas or hazardous areas.

It is a heating cable with semi-conductive matrix (made of polymer powder and graphite).

The power produced decreases as the temperature increases.



It can be cut to length, spliced and derived.

In case the cabe overlaps, it does not produce dangerous overheating nor deterioration.



It is available equipped with all its accessories and control devices.



DATA SHEET TO DOWNLOAD WITH ALL THE INFORMATION YOU NEED

Download
NO FROST PIPE SYSTEM LORENZONI
SELF-REGULATING CABLE TTL
2021- NO FROST PIPE TTL - Data Sheet.pdf
Documento Adobe Acrobat 519.0 KB
No frost pipe system lorenzoni, self-regulating, no frost pipes
SELF REGULATING NO FROST PIPE SYSTEM TTL


TTM - TTL - MICRO THERMOSTATS FOR NO FROST PIPE SYSTEM

We provide different models of thermostats that regulate the cable's temperature, also equipped with probe:

  • DBET5 - Industrial room thermostat with temperature capillary sensor +30°C -30°C, IP65 level of protection;
  • DBET23 - Industrial room thermostat with temprature coiled sensor +30°C -30°C, IP65 level of protection;

Thermostat to control the temperature realized for applications with heating cables in safe zones or ATEX zones.



DATA SHEET TO DOWNLOAD WITH ALL THE INFORMATION YOU NEED





Download
D-BET5-DBET23 THERMOSTATS
2021 - DBET - Data Sheet.pdf
Documento Adobe Acrobat 681.1 KB


ACCESSORIES

DATA SHEET TO DOWNLOAD WITH ALL THE INFORMATION YOU NEED



CONNECTION/JUNCTION KIT FOR NO FROST PIPE SYSTEM TTM-TTL-MICRO:

Download
ACCESSORIES
SCHEDA TECNICA.pdf
Documento Adobe Acrobat 733.1 KB

ADDITIONAL ACCESSORIES:


DIRECT SUPPLY: kit for fast connection for direct connection between the power cord and the heating cable: waterlight execution IP66 and IP68;



THREE-WAY POWER SUPPLY: Kit T-connection to connect a power cable to two heating standard cables: waterlight execution IP65;





FOUR-WAY JUNCTION: Joint kit for four heating cables tyoe TTM-TTL-MICRO;







GASKET: Slotted gasket for heating cable, type TTM-TTL-MICRO;











TERMINAL: Sealing cap of shrinkable material for heating cables type TTM-TTL-MICRO: waterlight execution IP65;



PLATE: standard plate support for all kits. Dimensions: 125 x 25 x h 105mm, 2mm thick;

connection kit Lorenzoni, heating cables
CONNECTION KIT - DIRECT SUPPLY
connection kit Lorenzoni, heating cables
CONNECTION KIT - THREE-WAY POWER SUPPLY
juction kit Lorenzoni, heating cable
FOUR-WAY JUNCTION KIT
slotted gasket for heating cable Lorenzoni
SLOTTED GASKET FOR HEATING CABLE
Terminal for heating cable Lorenzoni
TERMINAL FOR HEATING CABLE
plate for heating cable lorenzoni
PLATE FOR KIT

POLYESTER TAPE: Tape-reinforced polyester with glass threads: Dimensions: 19mm x 50m; resistant up to 130°C;





ALUMINIUM TAPE: Aluminium tape, dimensions 50mm x 50m, resistant up to 150°C. Only for plastic pipes;







WARNING LABEL: it indicates the presence of electric cable under the insulation. To install every 5m of pipe;





Polyester tape for heating cable Lorenzoni
POLYESTER TAPE
Aluminium tape for heating cable Lorenzoni
ALUMINIUM TAPE
Warning label for heating cables Lorenzoni
WARNING LABEL


LORENZONI HEATING CABLES

CATALOGUES TO DOWNLOAD WITH ALL THE INFORMATION YOU NEED

Download
HEATING CABLE FOR DOMESTIC USE
2021 - Heating Cable for Domestic use 8.
Documento Adobe Acrobat 2.1 MB
heating cables lorenzoni
Download
COMMERCIAL BOOK
2021 - Commercial book ENG 16.pdf
Documento Adobe Acrobat 1.5 MB
Download
HEATING CABLES
2024 - CAVI SCALDANTI CIVILE - Flyer.pdf
Documento Adobe Acrobat 1.2 MB
